“BALTRON” a wide variety of cables suitable for process instrumentation. In the projects related to power generation & distribution, chemical & fertilizer industries and various other types of engineering industries, the process instrumentation plays a vita role in measurement, supervision and control of the process. Introduction of microprocessor based / computerised instrumentation has demanded stringent quality requirements along with special electrical parameters for instrumentation cables. Very low level electrical signals pass between measuring end and display units/controllers which are situated far off. These low level signals are prone to external noise pickups and heavy silenuation during transmission.
All this means that the cables to be used for instrumentation should be designed and manufactured very carefully, “BALTRON with its meticulous efforts in maintaining quality, stringent in process control during manufacture and the knowledge of cable designing, is proud to say that it is capable of supplying instrumentation cables meeting any Indian/International standard or a specific requirement desired by project authority.
HOUSE WIRES
FLEXIBLE SINGLE CORE CABLES
FLEXIBLE MULTI CORE CABLES
FLEXIBLE SUBMERSIBLE CABLES
C0-AXIAL CABLES
INSTRUMENTATION CABLES
BRAIDED / SHIELDED MULTICORE CABLES
CCTV CABLES
FRLS CABLES
CUSTOM MADE CABLES
CUSTOM MADE CABLES
.jpg)
CUSTOM MADE CABLES
FIRE SURVIVAL CABLES
Instrumentation Cables are specially designed to transmit signals without any external interference. They are used in Data Acquisition Systems, connection to Instruments, Computer Networking, PA Systems, Digital / Analog Control/Measuring & Communication Systems..
Construction: Cores, pairs, triads or quads.
Voltage Grade: Up to 1100V
Conductor: Electrolytic grade copper Bare / Tinned Solid / Stranded / Flexible Conductors
Range: 0.5 / 0.75 / 1.0 / 1.5 / 2.5 Sq mm up to 48 Pair
Primary Insulation: General purpose PVC / Heat Resistance PVC / LDPE / XLPE / PTFE / Fibre Glass / FEP / Silicone Rubber
Screening: Individual and / or Overall with following options - - Aluminium Mylar / Copper Tape with Tinned Copper Drainwire or - Braided with Bare or Tinned or Nickel Plated or Silver Plated Copper.
Inner Sheath : PVC / HRPVC / FRPVC / FRLS PVC / ZHFR / LSF.
Armouring: GI round Wire / Flat strip or Wire Braiding.
Outer Sheath: PVC / HRPVC / FRPVC / FRLS PVC / ZHFR / LSF.
Rip Cord: For easy removal of sheath.
Standards: BS-5308 Part - 1 & 2, BS-7655, IEC - 189 (1 & 2), VDE-0815 & 0816 and BS EN 50288.
Additional Features: Communication pairs, Bi-colour extrusion..
Instrumentation Cables are specially designed to transmit signals without any external interference. They are used in Data Acquisition Systems, connection to Instruments, Computer Networking, PA Systems, Digital / Analog Control/Measuring & Communication Systems.
Construction: Single or Multiple Pairs.
Voltage Grade: Up to 1100V

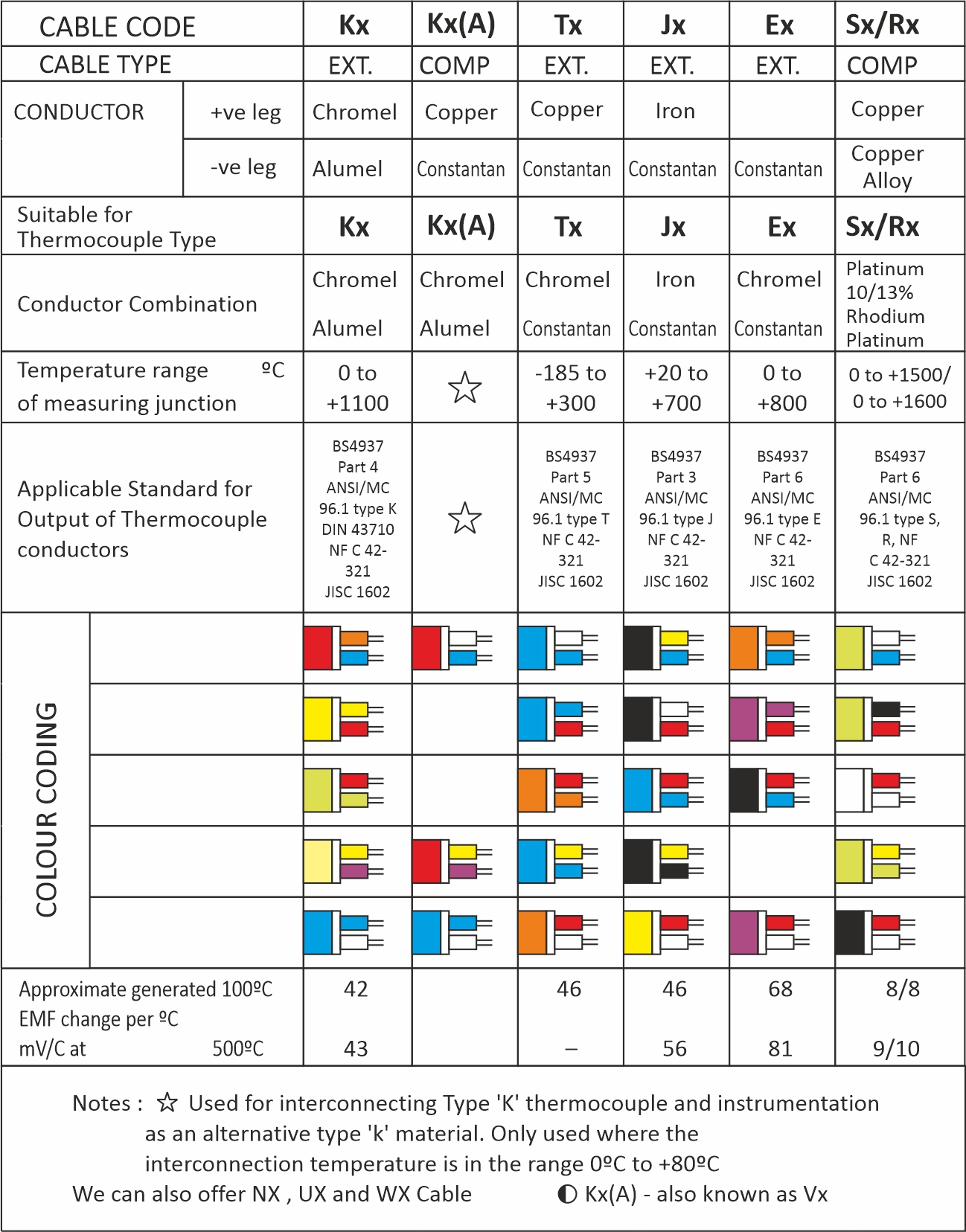

Cable Coder: Kx, Kx(A), Tx, Jx, Ex, Sx / Rx, Bx, Nx, Ux, Wx
Range: 16 AWG / 18 AWG / 20 AWG up to 48 Pairs
Primary Insulation: Individual and / or Overall with following options -- Aluminium Mylar / Copper Tape with Tinned Copper Drain wire or - Braided with Bare or Tinned or Nickel Plated or Silver Plated Copper
Screening: Individual and / or Overall with following options - - Aluminium Mylar / Copper Tape with Tinned Copper Drainwire or - Braided with Bare or Tinned or Nickel Plated or Silver Plated Copper.
Inner Sheath : PVC / HRPVC / FRPVC / FRLS PVC / ZHFR / LSF / PTFE / Fibre Glass.
Rip Cord: For easy removal of sheath.
Standards: BS-5308 Part - 1 & 2, BS-7655, IEC - 189 (1 & 2), VDE-0815 & 0816 and BS EN 50288.
Instrumentation Cables are specially designed to transmit signals without any external interference. They are used in Data Acquisition Systems, connection to Instruments, Computer Networking, PA Systems, Digital / Analog Control/Measuring & Communication Systems.
Application: For cable tray installation in intrinsically safe environment. For transmission of analog or digital signals designed for process control..
Standard: BS 5308 Part 1
Conductor: annealed bare copper complying with BS 5308 Part 1
Insulation: Polyethylene complying with BS 6234 Type 03 with a radial thickness pairs of 0.6 mm
Pairs: cores are twisted into pairs in nominal lays of 50 to 60 mm
Colour Code: Black / white with successive numbers, or per colour code confirming to BS 5308 Part 1.
Individual: PEach pair is individually shielded.
Shielding: with a polyster / aluminium (AL/PET) foil, aluminium side facing inwards; 125% coverage.
Pair drain Wire: 0.5 mm tinned copper
Cabling: The pairs are cabled into a cable core.
Overall:Shielded with a polyster / aluminum
Shielding:(AL/PET) foil, aluminum side facing inwards. 100% coverage.
Pair drain Wire:0.5 mm tinned copper
Outer Jacket:Black FR PVC complying with BS 6746 Type 6

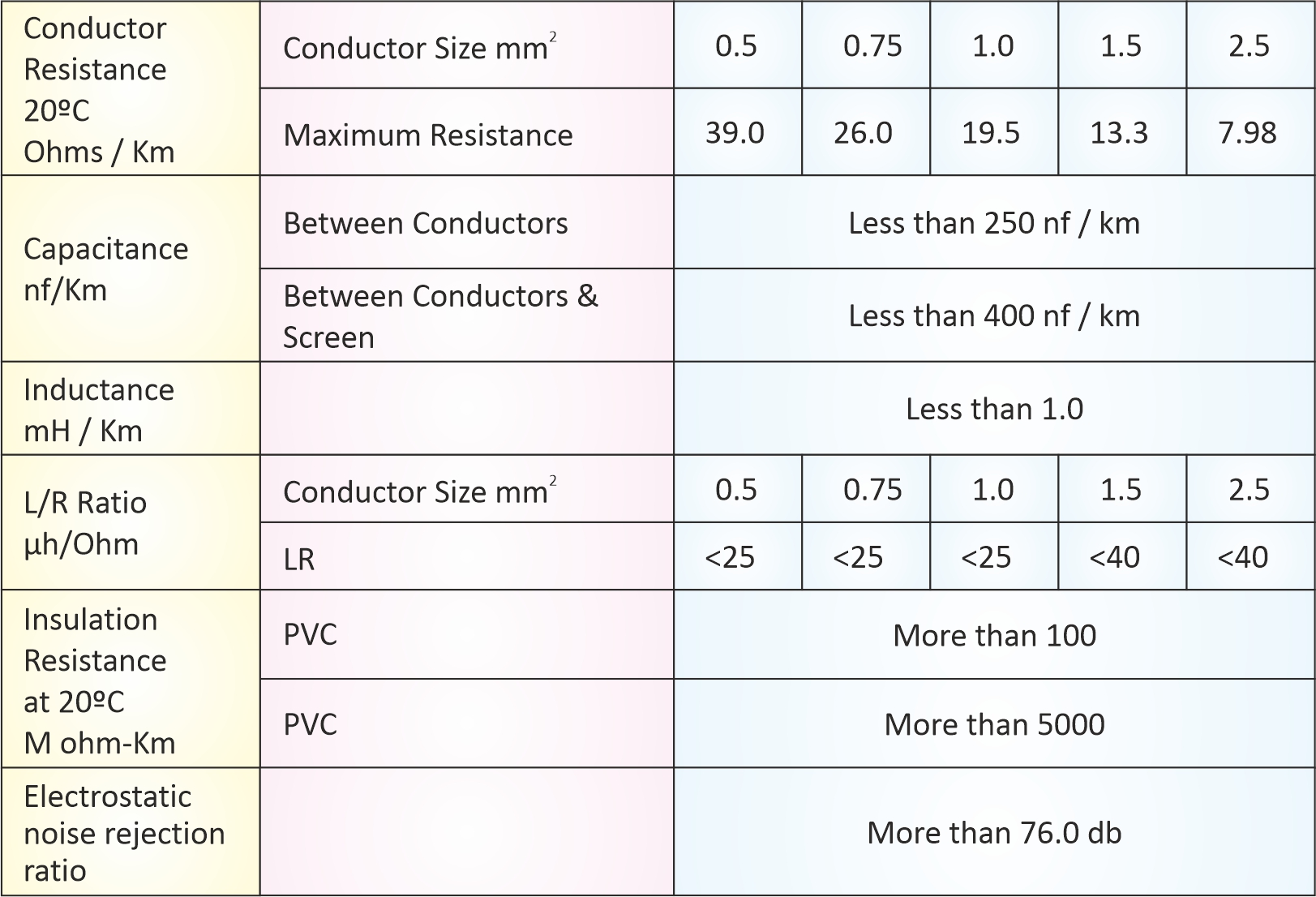

0.5 mm2 - 39.7 Ohm / km
0.75 mm2 - 26.5 Ohm / km
1.0 mm2 - 18.5 Ohm / km
1.5 mm2 - 12.3 Ohm / km
@25º C/1kHz
Insulation - 2000 Vdc / 1 min.
Between conductors
sheath - 5000 Vdc / 1 min
Insulation - 2000 Vdc / 1 min.
Between conductors
sheath - 5000 Vdc / 1 min
