LT CABLES

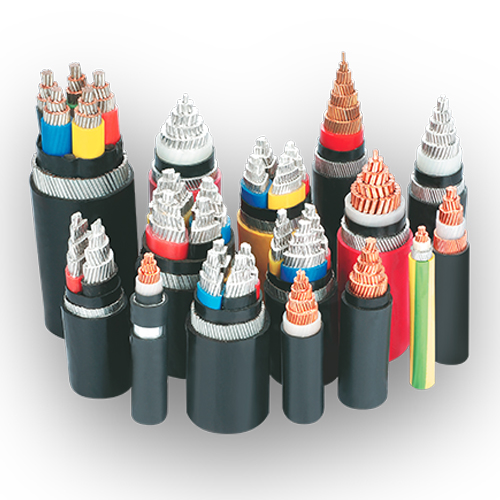

LT Cables

KEI Low Voltage Cables come in a variety of sizes, materials, and types, each particularly adapted to its uses. Cables consist of three major components: conductors, insulation, and protective outer sheath. The makeup of individual cables varies according to application.

The construction and material are determined by three main factors

  • Working voltage, determining the thickness of the insulation
  • Current-carrying capacity, determining the cross-sectional size of the conductor(s)
  • Environmental conditions such as temperature, water, chemical or sunlight exposure, and mechanical impact, determining the form and composition of the outer sheath of cable.

  • LV cables use stranded copper or aluminum conductors. although small conductor of cables may use solid conductors. The overall assembly may be round or flat. Non-conducting filler strands may be added to the assembly to maintain its shape. Special purpose LV cables for overhead or vertical use may have additional elements such as steel structural supports. Some LV cables for outdoor overhead use may have no outer sheath.

Technical Information

Type Size Voltage Rating
PVC / XLPE insulated cables conforming to IS:1554-I / IS:7098-I, BS:6346, IEC:60502, BS:5467, BS:6724 and Customer specific requirements Single Core 1.5 to 1000 sq. mm MuLVi core 1.5 to 630 sq. mm Upto1.1 kV

Applications

These cables are used for wiring domestic and commercial buildings. A fine drawn multi strand conductor provides enhanced Flexibility & makes it ideal for concealed wiring. It is suitable for installation in lighting fittings and appliances up to 1100 v (A.C)

Features

  • Excellent Electrical & mechanical properties.
  • Higher Flexibility ensure easy handling & longer life
  • High Flame retardant properties.
  • Steam and boiling water resistant & anti-rodent.

Construction

Conductor Stranded / Solid / Circular / shaped as per IS:8130, IEC 60228, BS 6360
Material Aluminum / Copper
Insulation PVC /XLPE/HR PVC / Zero Halogen
Inner sheath PVC /HR PVC /FR/FRLS PVC / Zero Halogen as per IS 5831, IEC 60502, BS 7655.
Armour G.S STEEL ROUND WIRE /G.S. STEEL FORMED WIRE (STRIP) / G.S. STEEL TAPE/ALUMINIUM ROUND WIRE / ALUMINIUM FORMED WIRE (STRIP)/ ALUMINIUM TAPE as per IS 3975, IEC 60502 P-1.
Outer sheath PVC /HR PVC /FR/FRLS PVC / Zero Halogen as per IS 5831, IEC 60502, BS 7655.

Applications

LV cable is used widely in many industries ranging from industries involved in water, renewable energy, distribution and power networks, nuclear and thermal power stations, airports, marine, defence, telecommunications, windmills, building,mining, offshore, applications,ship wiring, railways, automation, audio-visual and manufacturing industries, these cables can be suitable for a huge amount of applications.

Features

  • BIS certified IS: 1554Pt-1, IS: 7098Pt-1 product which is a best third party guarantee in the country.
  • Available in wide range of operating temperature ranging from -40°C to 90°C.
  • The copper/Aluminum conductor provides excellent corrosion resistance, even at elevated temperatures.
  • Best suited for fatigue damages caused due to vibration or loading cycles.
  • Exhibits excellent electrical, flame, and heat resistance.
  • The cables are also exceptionally resistant to grease, mineral oils and ozone.
